Hey guys

So, now that i have a Twister (Woot!) My Spectra has been swapped back from Remix Deck duty to FX Unit duty.
I have put together a mapping that combines a modified DeckGrat mapping on Bank 1, and a basic Mixer,Transport, Browsing section on Bank 2.
You can quite happily Select, Load, Mix & Jam Effects very simply with my mapping.

Check it out here: https://maps.djtechtools.com/mappings/4575

----------------

This is a modified 2 Bank version of flashflooder's original DeckGrat mapping, with a second bank with basic mixer, transport & browsing controls.

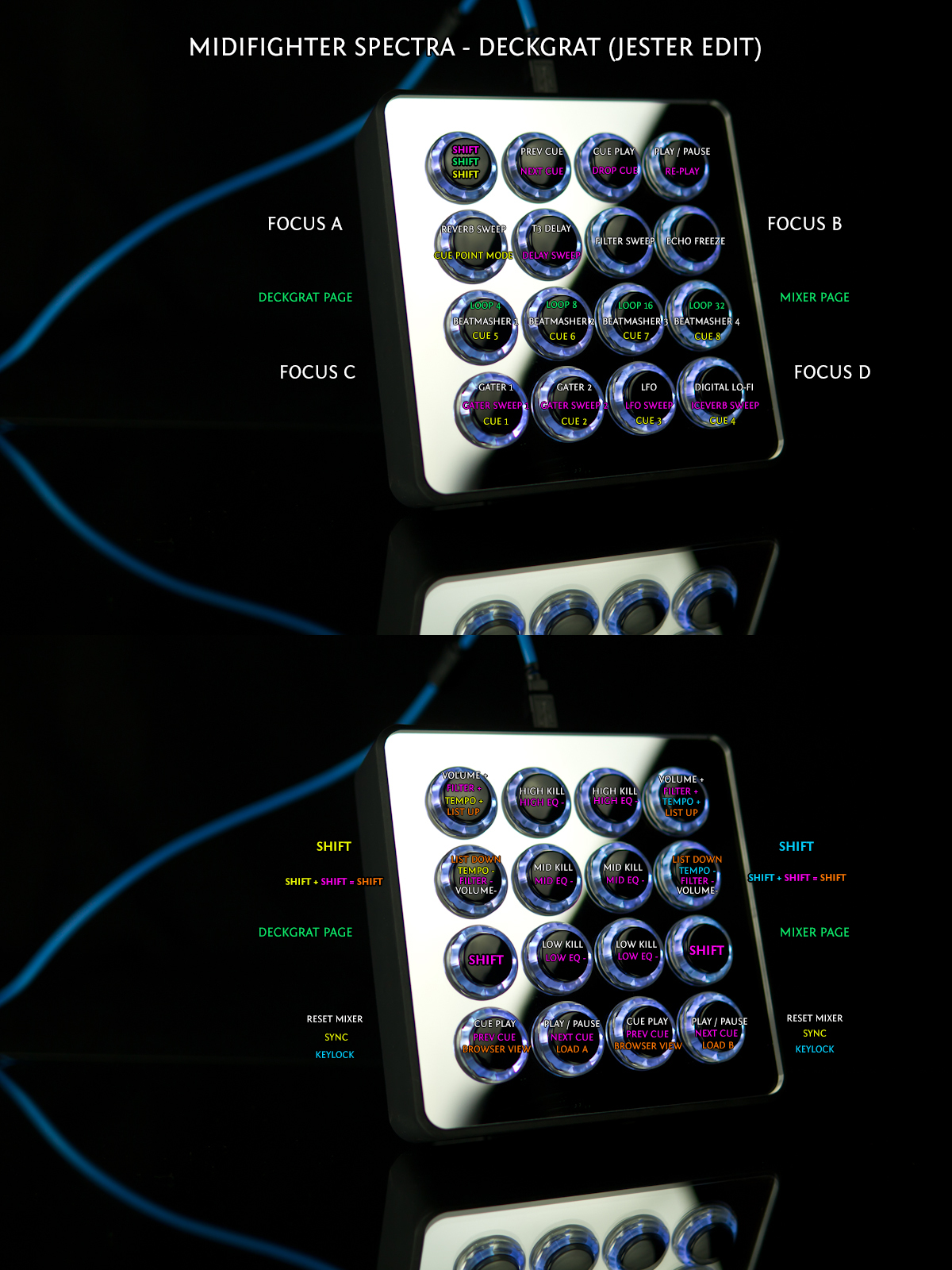

Included is a detailed diagram of the mapping, here is a brief description of the changes/additions I have made.


The two middle side buttons change from DeckGrat to Mixer Mode.


Changes to the DeckGrat Mapping:


- Changed Flux Mode to Prev Cue (Next Cue w/ SHIFT)
- Changed Cue To Cue Play (Drop Cue Remains the same)
- Reversed the order of the Loop commands and changed the values to 4, 8, 16 & 32
- Removed LFO Filter, moved Filter:92 LFO to this position
- Changed Filter:92 LFO to Peak Filter (Super Knob)
- Some effects now have a sweep effect in combo with SHIFT e.g Gater, Delay & LFO
- Reverb is now a sweep by default (SHIFT + Reverb changes to Cue Point Mode)
- SHIFT + Digital Lo-Fi Changes the effect to a Sweeping Iceverb


Mixer Mode (Accessed by pressing the right side middle button)


- Please check the detailed diagram for commands, but basically you can play, cue jump, adjust volume, adjust gain, move up and down the browser,
load tracks, adjust & kill EQs, activate sync & keylock.

Setup Steps


1. In order to use this mapping, please download and unzip the mapping files. Inside you should see a .tsi file, a .mfs file, and a jpeg layout.


2. Open the MF Utility and Import the .mfs file. This will import the proper MF Spectra settings and button colors. You are welcome to change the button colors to what you want in the MF Utility. Please note that in some cases the mapping will override the set colors.


3. In Traktor's Preferences window, press the large Import button on the bottom left. Repeat this step once more to ensure that the FX settings load properly. Note: If the Beatmasher or Echo freeze buttons are not loading the proper effects you need to import the FX settings one more time.


4. Go into the Controller Manager and make sure that the In-Port and Out-Port for the mapping are set to your MF Spectra.


5. Start Jamming!






Original DeckGrat mapping here: https://maps.djtechtools.com/mappings/1115
