I'm a VERY happy APC puppy !! But no-one else understands

[deevey]

Just to keep things OT, I started a new thread in mappings regards some issues i'm having.. any ideas greatly appricated!

[tekki]

Excellent deal even!

[deevey]

You have no idea how close I came to buying a *cough* Numark mixmeister control !!

(In fairness it HAS got lotsa knobs and buttons and reasonably logical layout for the price).

[tekki]

[Kinetik]

@ Kinetik

Just a heads up, there isn't LED feedback on the encoders .. not crackers on that layout either but cheers ..

Cant for the life of me figure how to set the encoders to bar mode hrrrmmmm

Guess I'm more of a channel strip kinda guy :P

I like my controllers to be "stupid proof" for those JD & Coke moments

There is led feedback on the encoders they just default to zero and you have to have the device in and turned on before you launch traktor. Like i said it was an old TSI and at the time i just wanted to come up with a layout to use only the APC. there is a ton of room for improvement on that but the basic mappings are there for everything and its pretty easy to change.

i forget which was which but setting the led options to 1/2/3 will change the type of led feedback (pan etc). also make sure you add 8 to the outgoing midi CC#

[deevey]

i forget which was which but setting the led options to 1/2/3 will change the type of led feedback (pan etc). also make sure you add 8 to the outgoing midi channel

Cheers for that, knew it couldnt be that hard

How'd you mean add 8 to the midi channels, you mean map everything for all 8channels ? or 1+9 ?

[Kinetik]

Cheers for that, knew it couldnt be that hard

How'd you mean add 8 to the midi channels, you mean map everything for all 8channels ? or 1+9 ?

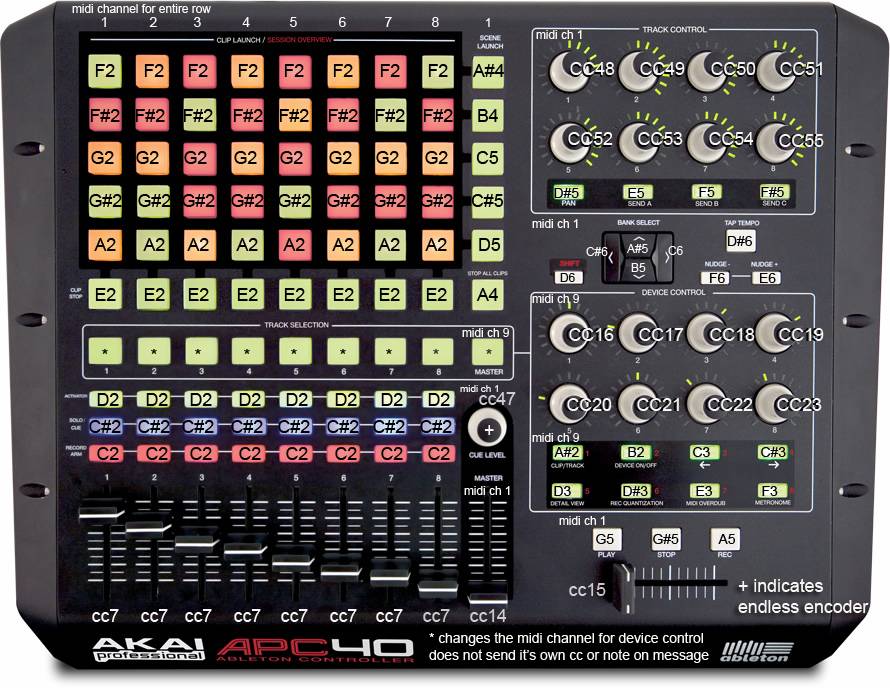

ok so the very tip right encoder is CH1 CC51 (the midi-in channel you use) but for midi out for led feedback its CH1 CC59. so for the encoders you add 8 to the CC#

sorry if my last post was a bit confusing

if you take a look at my TSI config. all the numbers are there to cheat with

this was also pretty helpful



once i have a bit more time Ill start uploading all my different templates for the diff hardware i have. I have a bunch of stuff for bomes as well

cheers

[Kinetik]

Also wanted to add using the track selection buttons changes the midi CH for the device control section. In my old tsi ch1 was eq for deck c&d, ch2 was fx 1&3, and ch3 was fx2&4

My current setup uses bomes for smart buttons/encoders and you can also control ableton and tracktor at the same time by adding a toggle combo with bomes so you can just hit the combo buttons and it will change which app you are controlling

I highly recommend checking out bomes midi translator as well. Really opens up the hardware.

Also Check out MLRV2 if you want monome functions

-j

[Kinetik]

Just picked up a steal of a deal on an unused APC40 for a whole $20 more than a APC20 !!

And btw that is a really good deal

[deevey]

I've got completetly different values to you :P

Your F2's are my F3's, your CC51 is my CC23 also my encoder rings work without changing the values +9

No wonder the TSI's I've been trying we're making no sense

Cheers anyhoo.. the encoder LED's have me baffled though as can only assign a 0-127 value and range, anything other than 0.000000 & 1.000000 makes things screwy ?

Any ideas ?
