$13 six-channel audio interface

Hi. I just picked up one of these: Pardon Our Interruption... for $13. It seems to work really well as a dj audio interface. I’ve been able to mix two tracks in traktor externally without any problems. Is there really a downside to using this card over a professional card?

2

I don’t know that card but if they support drivers long term it would be good. And I doubt you get really good audio quality out from the digital to audio converter but then again you are not driving $1000 studio reference monitors, right. And I would be a little bit careful when transporting such cheap systems around in case the construction is weak.

3

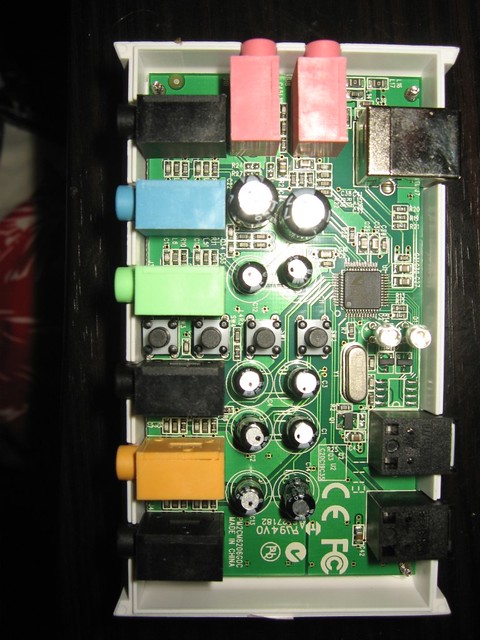

Its almost the same as the Encore one I bought for my APC40 mod and same chipset I believe and internal parts (C-media)

Downsides

  • Latency - I havent noticed a problem on OSX (10ms) but windows users have reported it them bad
  • Sound Quality on outputs - certainly not up to a “pro standard” but on par with most All-In-One DJ units I’ve heard and most consumer level “DJ” sound cards e.g. Numark I/O, mixvibes U-mix, Maya 4/4 etc.
  • Sound Quality on Inputs - SUCKS bigtime - really noisy on mic and line inputs!

If you are playing bigger, higher quality sound systems, or have a decent set of cans or studio monitors you might notice the difference quite a bit. For home/hobby use, bars and small clubs it shouldn’t be any issue.

480×640 87.9 KB

4

The main thing I’m concerned about is latency. I’ve been having some latency problems in Ableton and am wondering if the fact that I’m using a consumer interface is the problem.

5

I’m not noticing any issues with Ableton on a Mac/Coreaudio

However on Windows, drivers may be an issue as I mentioned and I honestly don’t really know what you could do about it apart from getting a better interface.

6

First thing I’d do, is try it out with Asio4all. It’ll be more likely to get your latency down below 10ms.

Unless you’re happy with how it’s performing - in that case, leave well enough alone! If it ain’t broken, don’t fix it…

7

He mentioned in another thread he’s on a Macbook, the latency caused possibly by him clock syncing Ableton with Traktor … :slight_smile:

8

wow, where were these things when i first started tinkering around.

9

can anyone please give some feedback regarding latency/drivers in windows?

10

Looking at that print layout I can SEE it sounds bad…

11

just ordered on of these for 13€ from the UK.
Will try it out myself and see how well it works with asio4all.
could be a cheap backup soundcard. or something for small house partys…

12

The Encore one I’d posted does not actually sound bad - its certainly on Par with most $100 “DJ” sound cards e.g. Numark i/o, Mix vibes, Torq Connectiv and almost any sub $400 All-in-one DJ units I’ve played with and the output volume is miles ahead on all channels and there is very little noise compared with others.

However the noise on the inputs is terrible - so its useless for any recording. $20 couldn’t really expect more and its handy as a backup.

13

maybe bad grounding on the device? anyone open these up and beef them a little?

14

Possibly - I’ll see what happens when I separate the inputs from the board, doesn’t sound like grounding though.

I’m sure you could Upgrade the Caps and perhaps a few other bits n’ bobs inside if you really wanted to - pretty sure It would not be worthwhile.

15

It’s a one-chip design. There is no buffering for the inputs. Chips are by default badly grounded due to their construction. That’s why more expensive soundcards buffer in’s and outs.

16

today i received my audio interface. it’s smaller than i thought. around the size of an ni audio 2.
windows 7 is recognizing the interface and installing drivers automatically. but i dont get any sound out of the outputs. in windows the audio levels show me that something is played back. but there is no sound from the outputs. tried all 3 outputs…

btw the delievered driver from the cd is not windows 7 compatible. gonna try the newest c-media cm106 driver when i found it and report back.

17

ok, found out that the chipset of the interface is a c-media cm6206.
found a working driver for windows 7 after 1 hour of searching.

did a small traktor session with it.
was using asio4all. the latency was 4,4 ms with a buffersize of 128.
sound quality is clear. better than my internal notebook soundcard.
good enough for small venues and private parties if you ask me.

can’t report anything about longterm stability yet.
but so far it runs stable without crashing, cracking or other disturbing noises.
