Gemini Cntrl-7 and Traktor Help…
Hi does any one has a .tsi for the jog wheels to scratch its touch sen jogs i cant seem to mapped them.
That should be like three commands jog touch, jog turn and scratch. Which of can’t map?
Attach your mapping in reply so I can check it out.
hi people i’m looking for the .tsi too please help ! thx
I have seen a lot of people looking for ctrl-7 Traktor mapping. I’ll be glad to create one but since I don’t own this unit somebody need to create diagram with all button/fader/enc MIDI assignments so I could manually map it from my Traktor and then share it here to be tested.
It should be something like this guy did for VCI-400.
/https://picasaweb.google.com/106138614399333257998/Vci400#5710108538833567154/
Hope to see some feedback on this
thanks for your help, i’d like to create this diagram for you but i don’t know how to do it, but i’m gonna try to map with your picture
the only .tsi i found is here and a lot of things aren’t assigned and don’t work http://www.native-instruments.com/forum/showthread.php?t=151462
It’s really simple, you need to open controller manager where you will find “learn” button, click on it ant it should be highlighted. After enabling “learn” option every button that you press you’ll see different MIDI node appears in manager (example #C1) same goes for knobs and encoders (example CC 001). Now just aplly all of this assignments next to controls on some ctrl-7 picture (find good resolution one) like in example of VCI-400 from above.
You can see me trying to help those guys also
I’m Stevan from NI forums.
well thanks again to help us

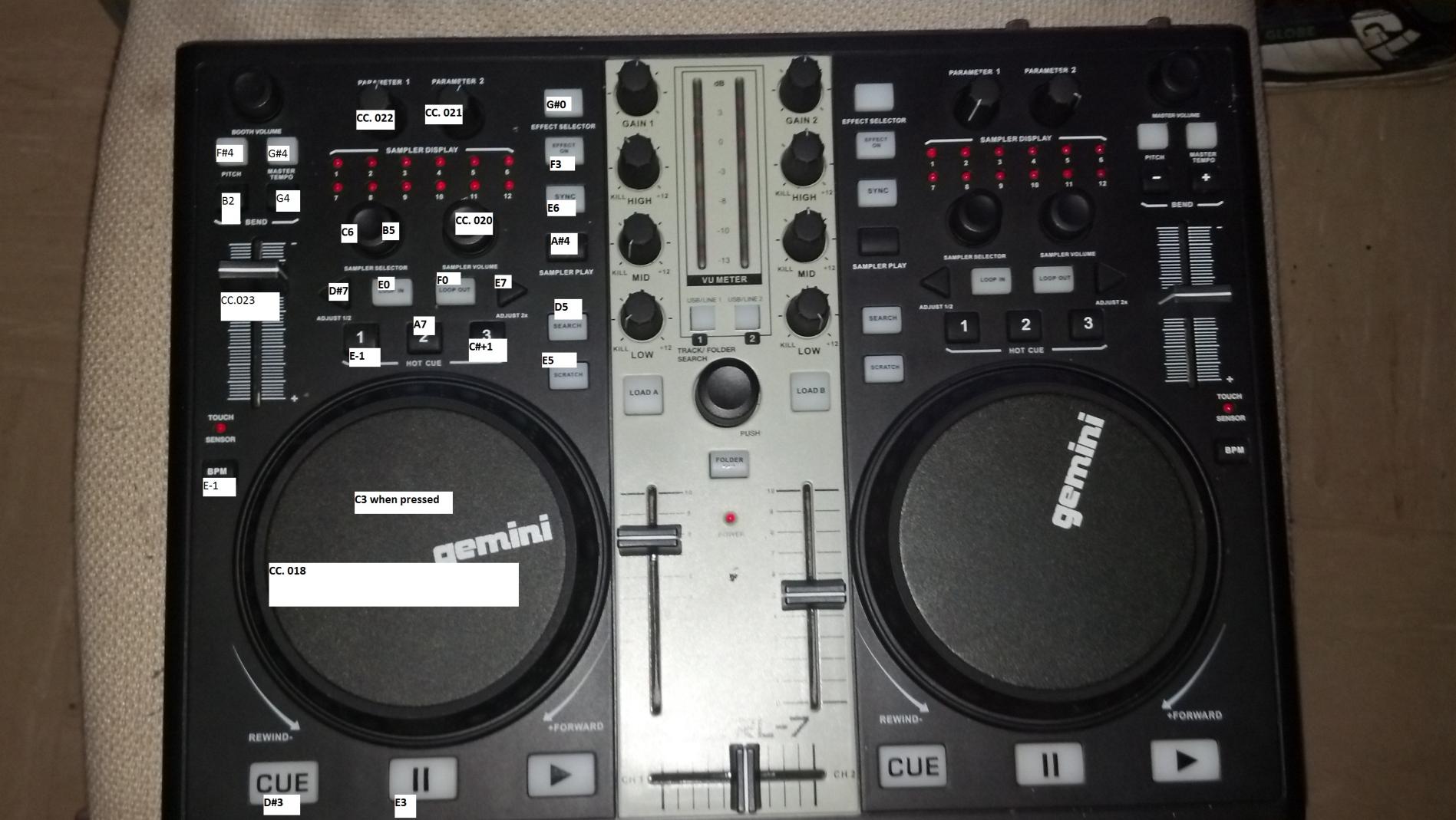

i’m doing the picture , but i want to know if it’s right before finish

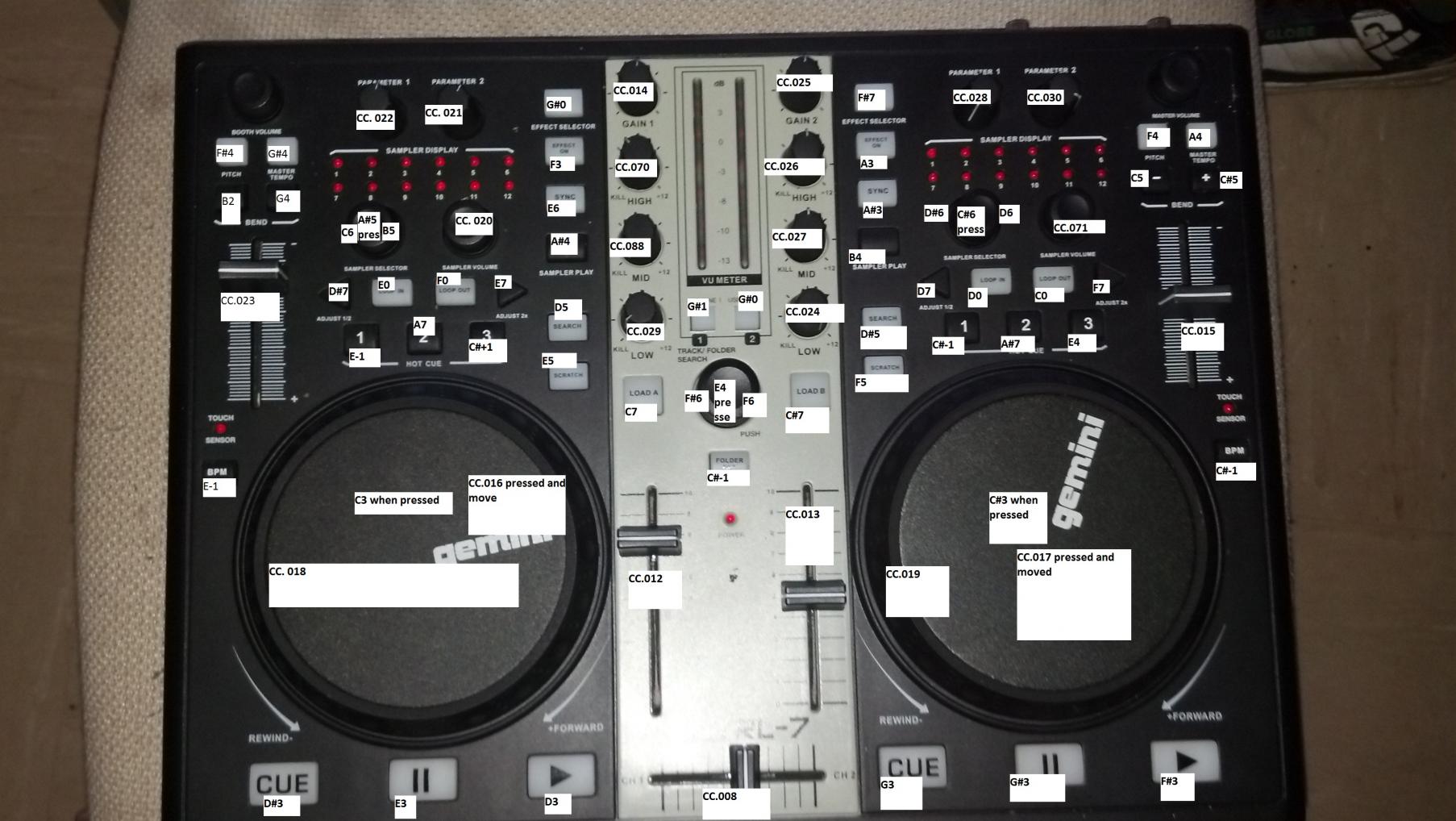

is that okay like this?
You got something wrong. I got “Invalid Attachment specified” massage.
Please try to reupload it.
done working?
Yes, it work now. You can finish it just like that, all good
Good job xhaze, I hope you have double check all assignments so there should be no issues later on.
Now I need to know what style of mixing would it be the best to map it like ?
-shift buttons!
-2 deck or 4 deck control
-scratch with or with out /scratch on/ button
-button to toggle between play/pause and not separately
-headphone buttons
-standard looping (no in and out, just simple loop on/off switch and direct 4 beat loop instead)
-how to handle control on effects since the leak of knobs
-filter directly on gain knob (gain with shift on hold - just like DJTT S2 mapping)
I got some ideas of my own too but I would like to hear what you think of this first and if there is some of your requests on what features would you like to see in this mapping.
i checked again and everythings seems to be ok ,
my english is not good i’m sorry and i’m a beginner in mixing(that’s why i bought gemini haha),
i only got these gemini so i need 2 deck control i think,
i want to scratch and i don’t think i need headphones buttons.
Don’t worry i’m sure you got better idea than me so i let you choose what you think is the best
I’ve started with mixer section with some additional features.
-/FOLDER/ button is now mixer shift. Need check on LED lite while holding it!
-Gain knob is now filter (gain control by holding mixer shift)
-Browser knob scroll playlist (tree list by holding mixer shift)
-Press browser knob to enter browser view (loading track to deck set view back)
ctrl-7.tsi (621 KB)
everything is perfect for the moment
Cool. I got some work to do right now and will come back with some more later.
Okay, nice
Ok, think I’m done with mixer section. Just added few more things:
-Deck load A and B
-Headphone cue (mixer shift + deck load buttons)
-EQ’s kill (mixer shift + EQ knobs to kill, knob solo to disengage it)
-I’ll leave two buttons under vu meter clear for now
Left jog wheel is mapped for scratch (top ofc) and pitchbend (by side). Not really sure will it work properly, give it a try… If it doesn’t work you need to specify me what is the problem and I’ll fix it. When we got good settings for it then I’ll map it for deck B also.
ctrl-7.tsi (625 KB)
