S4.Mk1-Factory++ - Mapping done. Feedback would be very much appreciated.
S4.Mk1-Factory++ by Sûlherokhh, Version 087 - Based on Traktor 2.81
https://maps.djtechtools.com/mappings/4888
FEATURES
- 4 expanded FX Units for all Decks
- Customizable InstantFX & JogFX
- Loop Mode & Freeze Mode for Track Decks
- Full Range of Remix Deck Sample/Slot Options
- 64 Cell Triggers on 4 Sample Pages in Slot Mode
- Flux Mode / Tempo Reset
- Numerous Small Additions like
- Intuitive extra LED’s
- Crossfader Curve adjustment & LED
- Expanded Layout Manipulation
- Waveform Adjustments
- FX Routing Selector
- Audio Recorder Controls
- Key Adjustment
- Backward Loops
- Quick ‘Start Track In Active Loop’ Option
- Master Clock Auto Toggle, Master Clock BPM Adjustment via JogWheel, Monitor Tick Toggle
- Numerous ways to customize the extensively commented mapping.
Mapping Details.
- The panels show the S4 control assignments. Anything that says ‘Factory Function’ has not been overridden.
INTENT
- Create the S4 mapping i always wanted that has all the basic functions like the factory mapping plus all the stuff i don’t want to use the mouse for.
HISTORY
- This mapping is based on the DJTechTools S4 Mapping by Beaubryte. I used the factory mapping as it’s foundationso i could keep a couple of factory-mapping-only functions of the S4, mainly the Loop Size LED, the Loop Recorder Delete/Undo functions, the LoopIn/Out Cue adjustments with the Jog Wheel as well as the excellent COPY-MODE, which wasn’t possible within the limited variables and conditions provided by the programming environment. I’ve been tinkering with the S4 and Traktor for a year now and poured all of my discoveries into this mapping.
I hope you find it useful, either for pimping your S4 or as a treasure trove for mapping solutions.
As always, feedback ist very much appreciated. Enjoy!

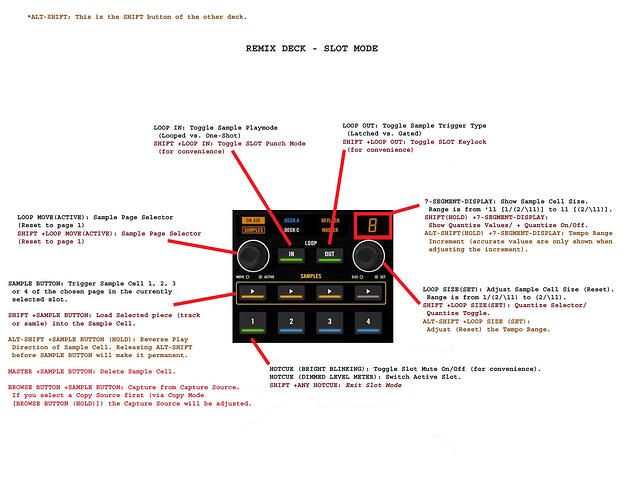

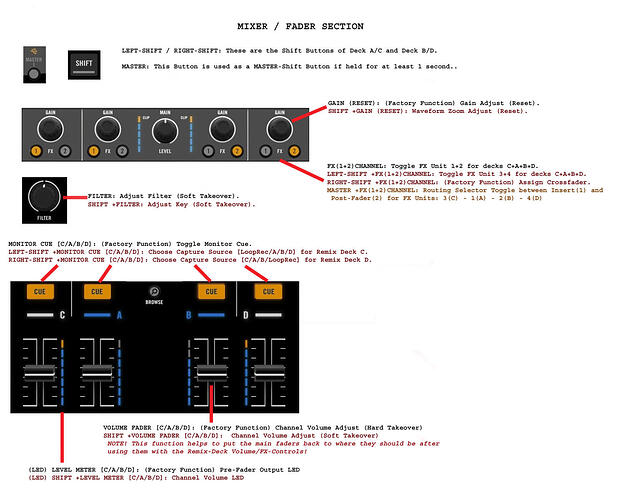

Here are a couple of images:
Sûl.
