Custom MIDI Controller
Page 1 of 3 123 LastLast
Results 1 to 10 of 28
  1. #1

    Default Custom MIDI Controller

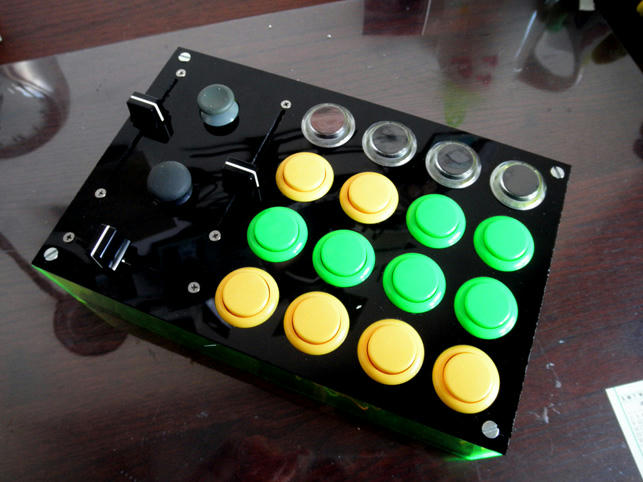

    Here is my ALMOST finished Arduino Mega based midifighterish controller. It consists of 4x4 arcade button grid with the top four button lit by 2 red LEDs, 2 sliders, a crossfader (modded to move much more quickly/easily), and 2 joysticks from an xbox controller. I am still finishing up the code to dial in the thumbsticks and get MIDI feedback from the LEDs( for now they light up when the button is pressed). [ame="http://www.vimeo.com/19106635"]MIDI Controller for Traktor on Vimeo[/ame]

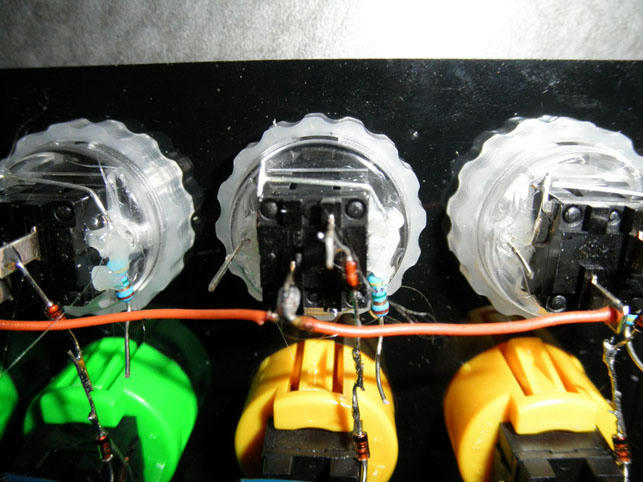

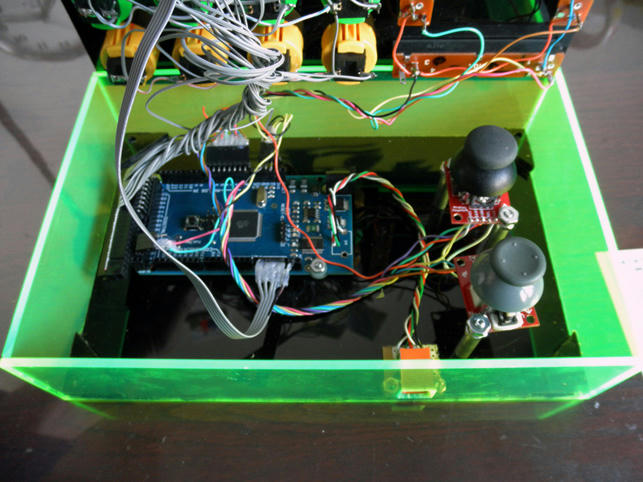

    View of underside clear buttons with 2 LEDs on each side connected in series with a resistor (47K i think) and lots of hot glue
    Last edited by bobsagat666; 01-23-2011 at 07:12 PM.
