Timecode Problem With Scratch Upgrade

[Subduction]

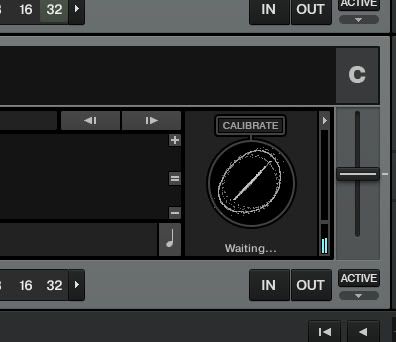

Hey all, first post. I just got the S4 scratch upgrade today and I'm having a problem when I try to calibrate the timecode vinyl. All software and drivers are up to date and as far as I know the hardware/software is configured right BUT the the orange calibration progress bar doesn't move at all. It registers the timecode and when I click "calibrate" it does nothing. any thoughts? Thanks!

Also, it's the MK 2 Timecode Records

[gizmo]

have you connected the ground cables from the turntables to the ground terminal screw in the back of the S4?

http://www.traktorbible.com/video/se...-timecode.aspx

Here is a complete video for the proper setup. Look at 2:00 for the explanation with the ground terminal

Hope this will help you!


EDIT: NI HP says: "Installation of service update TRAKTOR 2.1.1 or higher is required" (for MK2 Timecode)
I know you said your software is up to date but give it a short check to avoid loosing your nerves

[Subduction]

Thanks for the help. I figured it out!

Turns out it was the m447 cartridges I'm using...I had to switch the leads around (blue to white/ red to green)

I think it's a weird phase issue that causes traktor to screw up, but she works fine now!
