How to: Replace phono cables on technics 1200 MOD

Im bored so thought i would create a quick thread from some photos i took when i modded my rca cables.

i was changing my lights on turntable to leds and decided while its apart to do the internal ground mod and make my own rca mod. check it out

first of all i created a template the size of the hole under the tonearm where the rca’s enter

1023×769 48 KB

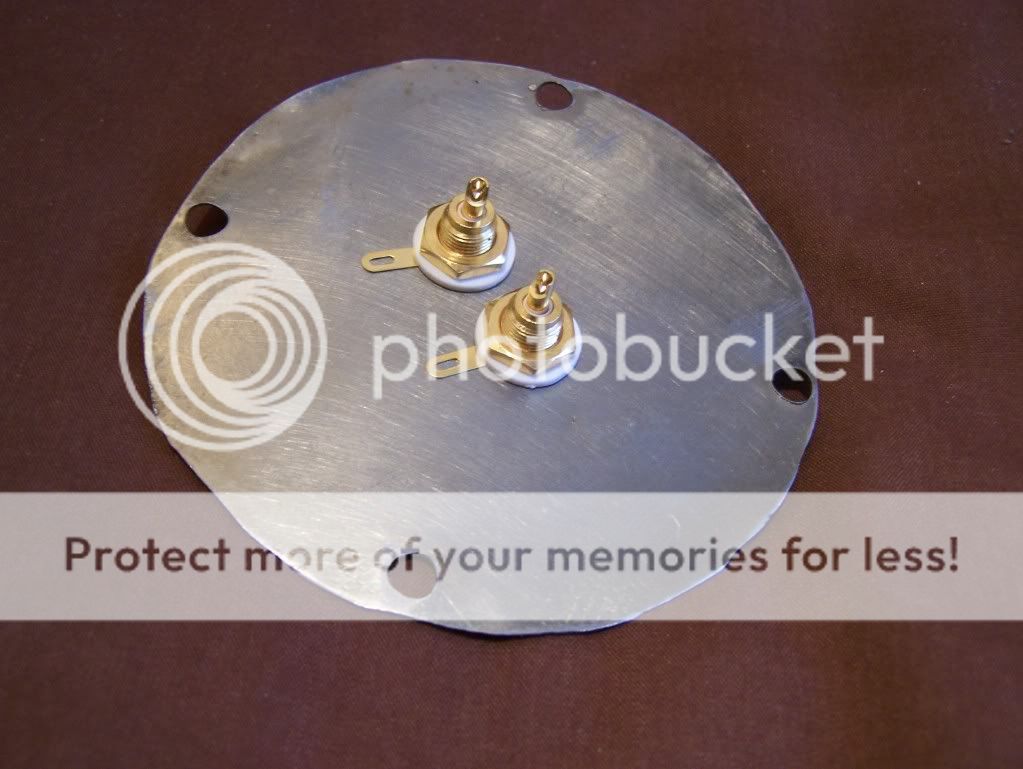

then i cut out some metal and drilled some holes and fitted a male and female phono connector

1023×769 79.3 KB

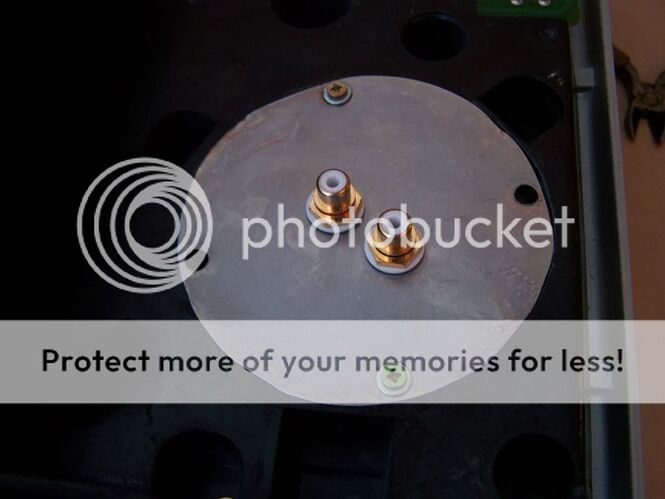

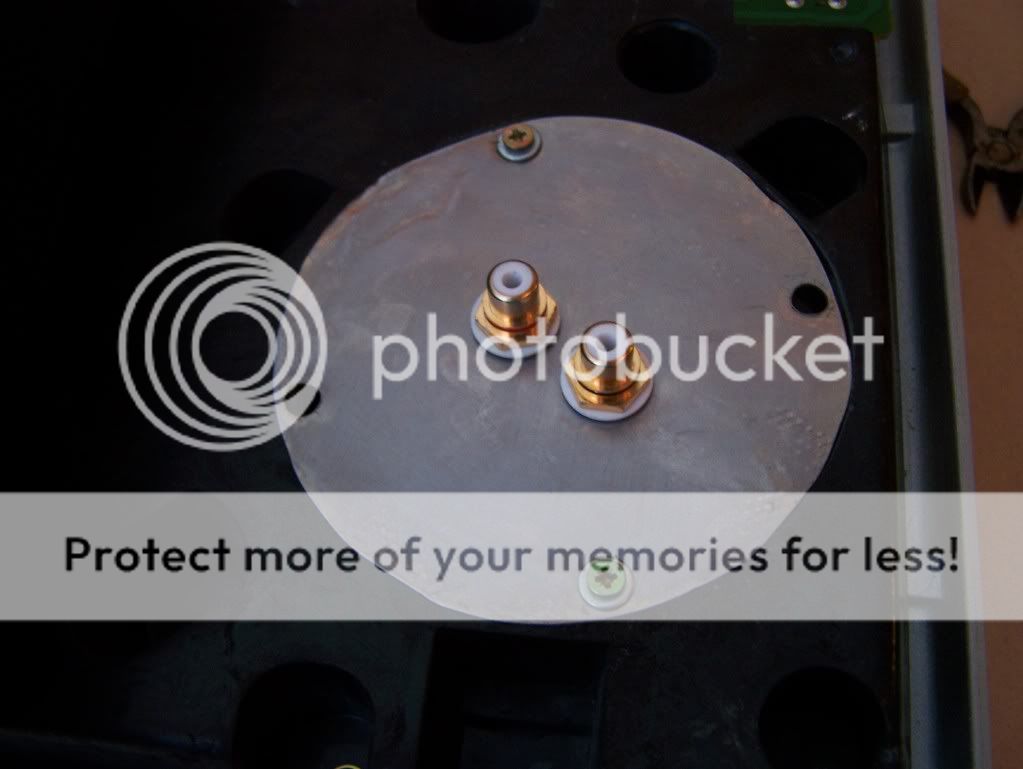

next i did the internal ground mod, wired up the phono connectors and screwed it down

1023×769 52.7 KB

next fit all the covers on

1023×769 52.8 KB

And basically thats it. not a hard mod but it works a treat and im pleased

1023×769 80.3 KB

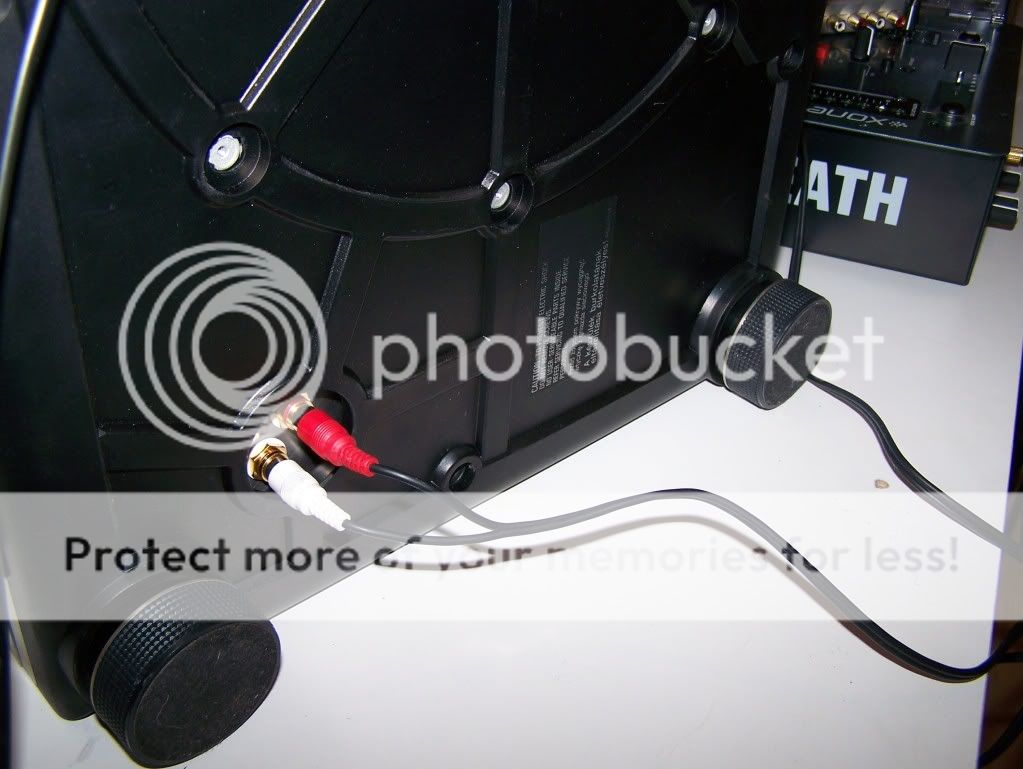

finally i hard to get angled adaptors as the cables would not fit when the turntable was in position

1023×769 47.3 KB

THE END

2

Great mod… Would be even better if the port was already angled

3

Ground Mod

Did you solder the ground to one of the RCA grounds? I’ve heard of people complain about a humming noise when they connect it to a PA system. Can you remember if you soldered it (if you did) to the red or white ground?

4

See the page of this french guy who produced this piece for a great and clean mod:

We are colleagues and both restore ,mods and repair Technics SL MKs in France.
Here is the link to my page:

He send me 2 pièces of this unit (on the right on the picture) and it works very great and it’s look very nice.

Technics Haus RCA Mod.jpg
Technics Haus RCA Mod.jpg960×635 43.8 KB

These units are available for sell at a very attractive price, take contact with Julian for that.

5

Thanks man! I just sent him a email on his FB page.
