Introduction and Goals of “The Ultimate FX Thread”
This thread is going to be dedicated to posting an evolving list of FX parameters. Anyone who has any custom instant press, Super Fader, Super Knob or Jog FX mappings, please post them on here so others can learn how to map FX and eventually create their own. Thanks, lets hope this gets good feedback!
This thread now contains all of the Instant Gratification parameters!
Soon to have Jog FX parameters!
Add In > FX Unit > Effect Selector / type-button / mode-direct / value-TurntableFX
Add In > FX Unit > Dry/Wet / type-button / mode-direct / value-0.500
Add In > FX Unit > Knob 1 / type-button / mode-direct / value-1.000
Add In > FX Unit > Knob 2 / type-button / mode-direct / value-0.555
Add In > FX Unit > Knob 3 / type-button / mode-direct / value-0.511
Add In > FX Unit > Unit On / type-button / mode-direct / value-1
Add In > FX Unit > Button 2 / type-button / mode-direct / value-0
Add In > FX Unit > Button 3 / type-button / mode-hold (or toggle)
Add In > FX Unit > FX Unit Mode Selector / type-button / mode-direct / value-single
Add In > FX Unit > FX Store Preset / type-button / mode-trigger
Make same FX unit assignment for all commands.
1 Button Masher Combo
First press:
-Set Fx unit #1 to group mode
-Set M1=1
-Loading Beatmasher and Transpose Stretch to unit #1
-Set dry/wet to max-1.000
-Set Beatmasher amount to 0.600
-Set Transpose Stretch amount to 0.900 (ready)
-Beatmasher on (direct 1)
Second press:
-Set M1=2
-Set Beatmasher amount to 0.800
Third press:
-Set M1=3
-Set Beatmasher ammount to 0.900
Fourth press and hold:
-Set M1=0
-Set Beatmasher amount to 1.000
-Decrease Transpose amount (sweep)
-Transpose on (hold)
Submitted by: Stewe
4 Button Ramp Delay
This button combo is variation to rattle snake effect that Dubfire often uses in sets. It’s pretty cool for making transitions between tracks or for spicing up tracks on the fly.
Make sure to set FX Unit in to single effect mode
Button 1:
Unit On = hold
Button 2 = 0
Button 3 = 1
D/W = 0.550
Knob 1 = 0.700
Knob 2 = 0.350
Knob 3 = 0.500
Button 2:
Unit On = hold
Button 2 = 0
Button 3 = 1
D/W = 0.550
Knob 1 = 0.700
Knob 2 = 0.350
Knob 3 = 0.650
Button 3:
Unit On = hold
Button 2 = 0
Button 3 = 1
D/W = 0.550
Knob 1 = 0.700
Knob 2 = 0.350
Knob 3 = 0.800
Button 4:
Unit On = hold
Button 2 = 0
Button 3 = 1
D/W = 0.550
Knob 1 = 0.700
Knob 2 = 0.350
Knob 3 = 0.950
Instant Grat Values
Button 1: Reverb, fx1, unit2
Add in > FX Unit > DryWet / type-button / mode-direct / value-1.000
Add in > FX Unit > Knob 1 / type-button / mode-direct / value-0.300
Add in > FX Unit > Effect Selector / type-button / mode-direct / value-Reverb
Add in > FX Unit > Button 1 / type-button / mode-hold
Add in > FX Unit > FX Unit Mode Selector / type-button / mode-direct / value-Group
Add in > FX Unit > FX Store preset / type-button / mode-trigger
Button 2: T3Delay, fx3, unit3
Add in > FX Unit > DryWet / type-button / mode-direct / value-0.600 (returns d/w back to 0.150 on release)
Add in > FX Unit > Knob 3 / type-button / mode-ditect / value-0.600
Add in > FX Unit > Effect Selector / type-button / mode-direct / value-T3Delay
Add in > FX Unit > Button 3 / type-button / mode-hold
Add in > FX Unit > FX Unit Mode Selector / type-button / mode-direct / value-Group
Add in > FX Unit > FX Store preset / type-button / mode-trigger
Button 3: Filter 92: LFO, fx2, unit3
Add in > FX Unit > DryWet / type-button / mode-direct / value-1.000
Add in > FX Unit > Knob 3 / type-button / mode-ditect / value-0.300
Add in > FX Unit > Effect Selector / type-button / mode-direct / value-F92-0
Add in > FX Unit > Button 3 / type-button / mode-hold
Add in > FX Unit > FX Unit Mode Selector / type-button / mode-direct / value-Group
Add in > FX Unit > FX Store preset / type-button / mode-trigger
Echo Freeze
Add in > FX Unit > Effect Selector / type-button / mode-direct / value-Delay
Add in > FX Unit > Unit On / type-button / mode-toggle
Add in > FX Unit > Button 2 / type-button / mode-toggle
Add in > FX Unit > Button 3 / type-button / mode-direct / value-0
Add in > FX Unit > DryWet / type-button / mode-direct / value-0.300
Add in > FX Unit > Knob 1 / type-button / mode-direct / value-0.600
Add in > FX Unit > Knob 2 / type-button / mode-direct / value-0.400
Add in > FX Unit > Knob 3 / type-button / mode-direct / value-0.300
Add in > FX Unit > FX Unit Mode Selector / type-button / mode-direct / value-Single
Add in > FX Unit > FX Store preset / type-button / mode-Trigger
4 Button Maher Combo
Button 1:
Add in > Modifier 1 > type-button / mode-hold > value=1
Add in > FX Unit > Dry/Wet > type-button / mode-direct / value=1.000
Add in > FX Unit > Knob 1 > type button / mode-direct / value=0.600
Add in > FX Unit > Knob 2 > type button / mode-direct / value=1.000
Add in > FX Unit > Button 1 > type button / mode-hold
Add in > FX Unit > Effect Selector > type button / mode-direct / value=Beatmasher
Add in > FX Unit > FX Unit Mode > type button / mode-direct / value=Group
Add in > FX Unit > FX Store Preset > type button / mode-trigger
Button 2:
Add in > Modifier 1 > modCon - M1=1 / type-button / mode-hold > value=2
Add in > Modifier 1 > type-button / mode-direct (inverted)> value=0
Add in > FX Unit > Dry/Wet > type-button / mode-direct / value=1.000
Add in > FX Unit > Knob 1 > type-button / mode-direct / value=0.800
Add in > FX Unit > Button 1 > type-button / mode-hold
Add in > FX Unit > Effect Selector > type-button / mode-direct / value=Beatmasher
Add in > FX Unit > FX Unit Mode > type-button / mode-direct / value=Group
Add in > FX Unit > FX Store Preset > type-button / mode-trigger
Button 3:
Add in > Modifier 1 > modCon - M1=2 / type-button / mode-hold > value=3
Add in > Modifier 1 > type-button / mode-direct (inverted)> value=0
Add in > FX Unit > Dry/Wet > type-button / mode-direct / value=1.000
Add in > FX Unit > Knob 1 > type-button / mode-direct / value=0.900
Add in > FX Unit > Button 1 > type-button / mode-hold
Add in > FX Unit > Effect Selector > type button / mode-direct / value=Beatmasher
Add in > FX Unit > Effect Selector > type button / mode-direct / value=Transpose Stratch
Add in > FX Unit > FX Unit Mode > type button / mode-direct / value=Group
Add in > FX Unit > FX Store Preset > type button / mode-trigger
Button 4:
Add in > Modifier 1 > type-button / mode-direct (inverted)> value=0
Add in > FX Unit > Knob 1 > type-button / mode-direct / value=1.000
Add in > FX Unit > Knob 2 > type-button / mode-dec > button options / auto repeat / resolution-Coarse
Add in > FX Unit > Knob 3 > type-button / mode-direct / value=0.740
Add in > FX Unit > Knob 3 > type-button / mode-dec > button options / auto repeat / resolution-Default
Add in > FX Unit > Button 1 > type-button / mode-hold
Add in > FX Unit > Button 2 > modCon - M1=3 / type-button / mode-hold
Add in > FX Unit > Button 2 > type-button / mode-direct (inverted) / value=0
Add in > FX Unit > Button 3 > modCon - M1=3 / type-button / mode-hold
Add in > FX Unit > Button 2 > type-button / mode-direct (inverted) / value=0
Add in > FX Unit > Effect 1 Selector > type button / mode-direct / value=Beatmasher
Add in > FX Unit > Effect 3 Selector > type button / mode-direct / value=Filter
Add in > FX Unit > FX Unit Mode > type button / mode-direct / value=Group
Add in > FX Unit > FX Store Preset > type button / mode-trigger
Button 1: Gater, fx1, unit1
Add in > FX Unit > DryWet / type-button / mode-direct / value-1.000
Add in > FX Unit > Knob 1 / type-button / mode-ditect / value-0.500
Add in > FX Unit > Effect Selector / type-button / mode-direct / value-Gater
Add in > FX Unit > Button 1 / type-button / mode-hold
Add in > FX Unit > FX Unit Mode Selector / type-button / mode-direct / value-Group
Add in > FX Unit > FX Store preset / type-button / mode-trigger
Button 2: Gater, fx1, unit1
Add in > FX Unit > DryWet / type-button / mode-direct / value-1.000
Add in > FX Unit > Knob 1 / type-button / mode-ditect / value-0.700
Add in > FX Unit > Effect Selector / type-button / mode-direct / value-Gater
Add in > FX Unit > Button 1 / type-button / mode-hold
Add in > FX Unit > FX Unit Mode Selector / type-button / mode-direct / value-Group
Add in > FX Unit > FX Store preset / type-button / mode-trigger
Button 3: F-0, fx2, unit1
Add in > FX Unit > DryWet / type-button / mode-direct / value-1.000
Add in > FX Unit > Knob 2 / type-button / mode-ditect / value-0.400
Add in > FX Unit > Effect Selector / type-button / mode-direct / value-Gater
Add in > FX Unit > Button 2 / type-button / mode-hold
Add in > FX Unit > FX Unit Mode Selector / type-button / mode-direct / value-Group
Add in > FX Unit > FX Store preset / type-button / mode-trigger
Button 4: LOFI, fx3, unit1
Add in > FX Unit > DryWet / type-button / mode-direct / value-1.000
Add in > FX Unit > Knob 3 / type-button / mode-ditect / value-0.3.00
Add in > FX Unit > Effect Selector / type-button / mode-direct / value-Gater
Add in > FX Unit > Button 3 / type-button / mode-hold
Add in > FX Unit > FX Unit Mode Selector / type-button / mode-direct / value-Group
Add in > FX Unit > FX Store preset / type-button / mode-trigger
Add in > FX Unit > Effect Selector 1 / type-button / mode-direct / value- Iceverb
Add in > FX Unit > Effect Selector 2 / type-button / mode-direct / value- Peak Filter
Add in > FX Unit > Effect Selector 3 / type-button / mode-direct / value- Reverb
Add in > FX Unit > Modifier X / type- knob / mode-relative / rotary sensitivity - 10% / rotary acceleration - 0%
Add in > FX Unit > Button 1 / type- button / mode-direct / value - 1
Add in > FX Unit > Button 2 / type- button / mode-direct / value - 1
Add in > FX Unit > Button 3 / type- button / mode-direct / value - 1 / Modifier X - 3
Add in > FX Unit > Button 3 / type- button / mode-direct / value - 0 / Modifier X - 2
Add in > FX Unit > D/W Adjust / type- knob / mode-direct
Add in > FX Unit > Knob 1 / type- knob / mode-direct
Add in > FX Unit > Knob 2 / type- knob / mode-direct
Add in > FX Unit > Knob 3 / type- knob / mode-direct
Add in > FX Unit > FX Unit mode selector / type- button / mode-direct / value- group
Make same FX unit assignment for all commands.
Submitted by: 0Notice
White Noise (ish) effect
Add in > FX Unit > Effect Selector 1 / type-button / mode-direct / value- Gater
Add in > FX Unit > Effect Selector 2 / type-button / mode-direct / value- Mulholland Drive
Add in > FX Unit > Effect Selector 3 / type-button / mode-direct / value- Peak Filter
Add in > FX Unit > Button 1 / type- button / mode-Hold
Add in > FX Unit > Button 2 / type- button / mode-Hold
Add in > FX Unit > Button 3 / type- button / mode-Hold
Add in > FX Unit > Button 3 / type- button / mode-Hold
Add in > FX Unit > D/W Adjust / type- knob / mode-direct
Add in > FX Unit > Knob 1 / type- knob / mode-relative / Rotary Sensivity - 23% / Rotary Acceleration - 0%
Add in > FX Unit > Knob 2 / type- knob / mode-relative / Rotary Sensivity - 100% / Rotary Acceleration - 0%
Add in > FX Unit > Knob 3 / type- knob / mode-relative / Rotary Sensivity - 70% / Rotary Acceleration - 20%
Make same FX unit assignment for all commands.
Submitted by: The Pancaker
Tape Delay Build:
Effect ON/reset button (Unit #1):
Add In > FX Unit > Unit On / button-toggle
Add In > FX Unit > Button 2 / button-toggle
Add In > FX Unit > Button 3 / button-direct / value=0
Add In > FX Unit > Effect Selector / button-direct / value=Tape Delay
Add In > FX Unit > FX Unit Mode Selector / direct-Single
note: Before you engage the effect button 2 should be ON in order for mapped BUTTON to toggle between ‘unit ON’ and ‘button 2’ on each press.
Macro knob:
Add In > FX Unit > Dry/Wet / fader-relative / rotary sensitivity=80% ; acceleration=0% / Unit 1
Add In > FX Unit > Knob 1 / button-direct / value=0.620 / Unit 1
Add In > FX Unit > Knob 2 / button-direct / value=0.690 / Unit 1
Add In > FX Unit > Knob 3 / fader-direct / Unit 1
Add In > FX Unit > Dry/Wet / fader-relative / rotary sensitivity=65% ; acceleration=0% / Unit 2
Add In > FX Unit > Knob 1 / fader-relative / rotary sensitivity=55% ; acceleration=0% / Unit 2
Add In > FX Unit > Knob 2 / button-direct / value=0.050 / Unit 2
Add In > FX Unit > Knob 3 / button-direct / value=0.850 / Unit 2
Add In > FX Unit > Button 1 / button-hold / Unit 2
Add In > FX Unit > Button 2 / button-hold / Unit 2
Add In > FX Unit > Button 3 / button-hold / Unit 2
Add In > FX Unit > Effect Selector / button-direct / value=Transpose Stretch / Unit 2
Add In > FX Unit > Effect Selector / button-direct / value=Reverb / Unit 2
Add In > FX Unit > Effect Selector / button-direct / value=Peak Filter / Unit 2
Add In > FX Unit > FX Unit Mode Selector / direct-Group / Unit 2
note: Before using this knob, Transpose should be set for 0.500
All of the 0Notice Jog Fx will be mapped with Group Fx on Unit 1 and Single on Unit 2.
FX Unit mode selector > Fx Unit 1 > Button > Direct > Group
FX Unit mode selector > Fx Unit 2 > Button > Direct > Single
All Assigned to Jog Touch:
Effect 1 Selector > Fx Unit 1 > Button > Direct > Beatmasher 2
Effect 2 Selector > Fx Unit 1 > Button > Direct > Peak Filter
Effect 1 Selector > Fx Unit 2 > Button > Direct > Delay
Button 1 > Fx Unit 1 > Button > Hold
Button 2 > Fx Unit 1 > Button > Hold
Dry/Wet Adjust (Fx Unit) > Fx Unit 1 > Button > Direct > 1
Knob 1 > Fx Unit 1 > Button > Direct > .5
Knob 2 > Fx Unit 1 > Button > Direct > .6
Unit On > Fx Unit 2 > Button > Hold
Dry/Wet Adjust (Fx Unit) > Fx Unit 2 > Button > Direct > .25
Knob 1 > Fx Unit 2 > Button > Direct > .1
Knob 2 > Fx Unit 2 > Button > Direct > .1
Knob 3 > Fx Unit 2 > Button > Direct > .3
D/W set at 100% (direct-hold)
Beatmasher w/ (4) buttons each launching parameter values at 50%, 70% 90%, & 100% (Hold-on)
LaserSlicer w/ a Fader controlling 50-0% of parameter value (inverted control)
Strrretch w/ a fader controlling 50-100% of paramerter value.
Faders have to be in realitve mode w/ sensitivity @70% and accelertion @0%
(1) Button (hold-on) to turn on both MacroFX. **Note MacroFX are not active if paramter value is at 50%.
Start w/ faders are all the way down and set LaserSlicer and Strretch slow macro at parameter value 50% initially before controlling.
B is for Beatmesher is keyboard mapping to call up for any effect instantly.
Smart Knob: Set start value for any FX parameter [Tutorial]
This is mapping should be fairly simple and as title says it allows the user to set any particular value at the moment the knob is turned from the far left position (start value). In this tutorial I will use the Deck A Filter as an example of creating a high pass filter knob.
Step one:

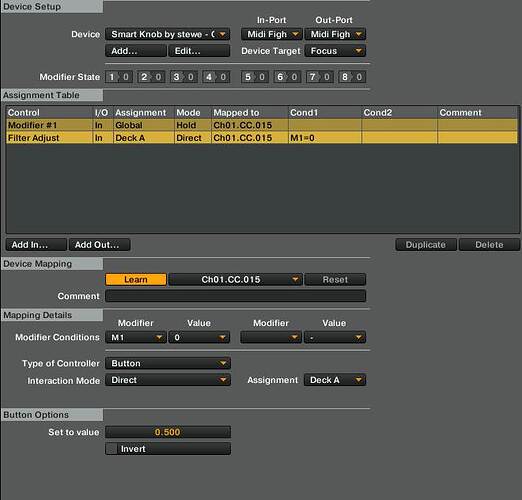

Add a modifier and map it to any fader/knob - I’m using M1 here but feel free to map which ever is available/free in your mappings. It should look like this:
This command will take care of setting my filter knob back to zero (center) each time I start modulating the knob to the right starting from far left position.
Step three:
So we’ll need another command which actually adjusts the amount of the filter to create a high pass modulation… Inverting this command will turn this knob in to a low pass filter.
If you find anything is confusing you please let me know in the comments. Hope you like and enjoy!
Best,
Relative Modifier Mapping Technique
This mapping technique will allow some more creative fader/knob usage on any MIDI controller. To start with experimenting go ahead and add one modifier which is free in your mapping… We’ll be using modifier #1 in this example
Add In > Modifier 1 > apply the settings same as in the image below
Time to test. Move the fader and notice that modifier value will toggle in between 0 to 7 but, the state will change right at the knob center position which allows for super knob functionality in your mapping.
Short example of this technique combined with an Echo-Freeze effect.
Let’s try do some mappings. We can start by assigning an effect button but in our case we want this button to get activated when the fader passes the center position and remain activated if you continue moving knob to the very end. Once you bring it back to center and slide back to zero value the effect turns off and remains in this state.
Map button commands to the same Fader with Modifier 1:
Add In > FX Unit > Button 1 / M1=0 / type=button / interaction=direct / value=0 / assign FX Unit target
Add In > FX Unit > Button 1 / M1=7 / type=button / interaction=direct / value=1 / assign FX Unit target
This is vary basic setup which helps show what this technique can let you do. I hope you guys like and find some great use cases where this modifier technique shows it’s full potential!
Add in > FX Unit > Effect Selector 1 / type-button / mode-direct / value- Gater
Add in > FX Unit > Effect Selector 2 / type-button / mode-direct / value- Mulholland Drive
Add in > FX Unit > Effect Selector 3 / type-button / mode-direct / value- Peak Filter
Add in > FX Unit > Button 1 / type- button / mode-Hold
Add in > FX Unit > Button 2 / type- button / mode-Hold
Add in > FX Unit > Button 3 / type- button / mode-Hold
Add in > FX Unit > Button 3 / type- button / mode-Hold
Add in > FX Unit > D/W Adjust / type- knob / mode-direct
Add in > FX Unit > Knob 1 / type- knob / mode-relative / Rotary Sensivity - 23% / Rotary Acceleration - 0%
Add in > FX Unit > Knob 2 / type- knob / mode-relative / Rotary Sensivity - 100% / Rotary Acceleration - 0%
Add in > FX Unit > Knob 3 / type- knob / mode-relative / Rotary Sensivity - 70% / Rotary Acceleration - 20%
Make same FX unit assignment for all commands.
I usually assign it to an empty deck with gain bumped up quite a bit. The final end of the effect sounds kinda dirty and glitchy though so I don’t usually go there. It’d be awesome if someone tried it and improved it.
Thanks for contribute! I don’t have controller ATM to check your parameters but can imagine how it sounds since I was experimenting on white noise as well. Found that Drive, LOFI and T3 Reverb with right amount of parameters can bring it close to original. I ended to use white noise sample when mixing techno and psy.
Here is the sample of it if somebody want to do the same:White_Noise.zip (99.7 KB)
Here’s a quick and easy mapping I threw together for anyone who, like me, has an old numark mixtrack lying around that they no longer use. It controls any 4 of the macro fx through the mixtrack’s jog wheels.
Can you give the mapping in tekst like on this first page of the thread. I think thats the reason of the thread. It’s easyer than to inport your tsi and analyse it. No hard feelings I hope
To 0Notice and Stewe, can you place the good FX Mappings on the first page?
I only posted it in case anyone had a specific need for it, there’s nothing in there with a mapping complicated enough to require listing out the steps. the drama sweep effect is already listed and the rest is just mapping basic fx controls.
sorry if that came off as dismissive, here’s the macro jog effects section of the mapping.
Mapped to fader
Add in > FX Unit > DryWet / type-fader/ mode-direct
Mapped to jog wheel TOUCH
Add in > mixer > Effect unit on / type-button / mode-hold/deck A
Add in > mixer > Effect unit on / type-button / mode-hold/deck B (Invert) (and vice versa, depending which deck you’re mapping for)
Add in > FX Unit > Button 1 / type-button / mode-hold
Mapped to jog wheel ROTATION
Add in > FX Unit > Knob 1 / type-encoder/ mode-relative
mapped to each selector button
Add in > FX Unit > Effect Selector / type-button / mode-direct / value-Laserslice(or whatever)
Add In > FX Unit > Knob 1 / type-button / mode-direct / value-0.500
Add In > FX Unit > FX Unit Mode Selector / type-button / mode-direct / value-group
Add in > FX Unit > FX Store preset / type-button / mode-trigger
Super Knob FX: Instant Build Up, Do I need a Button or a Knob? I want to do it with the Jog Wheel?
?: Add in > FX Unit > Modifier X / type- knob / mode-relative / rotary sensitivity - 10% / rotary acceleration - 0%: = Modifier X my Jog Wheel?
OK: Add in > FX Unit > Button 1 / type- button / mode-direct / value - 1 (I use Hold, is that ok?)
OK: Add in > FX Unit > Button 2 / type- button / mode-direct / value - 1 (I use Hold, is that ok?)
?: Add in > FX Unit > Button 3 / type- button / mode-direct / value - 1 / Modifier X - 3, I dont understand this?
?: Add in > FX Unit > Button 3 / type- button / mode-direct / value - 0 / Modifier X - 2, I dont understand this?
?: Add in > FX Unit > D/W Adjust / type- knob / mode-direct, (Do I need a Value? I don’t have a knob, just button)
?: Add in > FX Unit > Knob 1 / type- knob / mode-direct, (Do I need a Value? I don’t have a knob, just button)
?: Add in > FX Unit > Knob 2 / type- knob / mode-direct, (Do I need a Value? I don’t have a knob, just button)
?: Add in > FX Unit > Knob 3 / type- knob / mode-direct, (Do I need a Value? I don’t have a knob, just button)
Add in > FX Unit > FX Unit mode selector / type- button / mode-direct / value- group
please excuse me for the inconvenience but I’m trying to learn the mapping and it is verry hard.
Thx again
No problem man! I actually mapped a bunch of super knobs on my X1.. will see if I get around to posting them. One of them is ArmyofMe’s sweep n’ drama effect, the other one I can’t remember since I rarely use it anyway lol.
I tried going the white noise sample route some time ago but in the end I just couldn’t get used to having a separate track just for that.
(also from me).
