Cable Advice Needed
Can anyone comment on cabling for me? My signal path goes:
Laptop USB OUT > DJM-850 USB IN > DJM-850 RCA out > Behringer XENYX 1002 1/4" IN > Behringer XENYX 1002 1/4" OUT > T-AMP RCA IN.
Phew!
Iād like to get an XLR OUT of my DJM 850 going to the Behringer XENYX 1002 1/4" IN.
Would 2 of THESE do the job???
Iāve never used XLRās before. Do I need to worry about anything - or is XLR to 1/4" a straight swap???
Straight forward swap and yes these would do the job nicely.
Beaut! Thanks for the quick response.
No worries sir, are you using the xlr ins, if not could use those, would give you eq control overall, could be handy?
You mean on the Behringer?
I though tthose were for Mics only? I might be wrongā¦ Prett cool if theyāre not, though!
re: eqās - Iāve just bought a nice little T-Amp with bass and treble controls.
You can use them for line as well, just make sure the phantom power is off.
Well if you have controls on the T-amp then just go for the original way of XLR to TRS from the DJM.
But at least now you know about the Behringers inputs.
Nice one.
I probably will use the XLR in on the Xenyx. No point using non-standard cables unless there is a specific need to!
The XLR inputs are Mic level, so you probably wonāt be able to connect your DJM to them.
The Xenyx TRS line inputs are balanced, so you should really buy balanced XLR-TRS cables.
I also donāt see why you canāt use the same EQs with the TRS inputs - unless thereās something Iām missing?
Because the mixer supports both balanced and unbalanced 1/4" connections, I would suggest you prefer to use a balanced patch cable. Depending on the need for male/female xlrā¦
OR
Thanks for the advice, guys. Much appreciated.
So - just buying 2 of these should take care of the connection from the DJM-850 to the Behringer mixer:
or;
Pretty colours are important to me.
Then, to go from the Behringer mixer to the T-Amp, one of these:
Just wanna make sure I donāt connect anything that goes BANG!
DJM-850 Rear Panel
Xenyx 1002 Top Panel
Yes, those look right. Iād use adapters for connecting to the T-Amp rather than yet another specialised cable, but thatās just personal preference.
You could also use more of these adapters and use the RCA output of the DJM850 instead of the XLR outs, if you have spare RCA leads lying around.
Makar1 - Iām taking the plunge on spending some money on nice cables so that I can finally get rid of some stock cables nā connectors that Iāve got lying around! Over the years Iāve accumulated a MASS of various RCAās and connectors/adapters.
Iāve just had a LITTLE windfall and decided to blow it on some nice cables.
'Cos I know how to live.
Thanks for the advice - I appreciate it.
Just out of interest, what are you hoping to achieve by using the XLR outputs?
Any why do you have the Behringer unit at all?
The cables that youāve chosen in your last post will do the job but the reality is that for the best sound get some decent RCA leads to go from the RCA output of your DJM to your T-Amp.
EDIT: nice cables ā¦ Hmmmm ā¦ Try and find some with real Neutrik connectors and Canare/Mogami cable, not the ones you have posted.
Frankle - I just want to use the Master1 Outs of the DJM.
I have the behringer unit because I sometimes use a 2nd laptop for multi-track mixes (some weak ass juggle routines, for example) and so I need to hear the output from Ableton Live from one lappy, and Traktor from another. Having the separate mixer means Iām not fiddling about behind mixers and amps if I need to do any re-routing.
I actually used to use a Behringer patchbay for this - but it got a bit messy, and was taking up too much space on my desk.
Iāll post a set-up pic sometime.
In your PM you said ou had a suggestion? Wanna elaborate?
So your T-Amp, does it only have RCA inputs or are there any form of balanced (XLR or TRS) inputs?
Just RCAās. Itās one I got from ebay - and it is GREAT for the money:

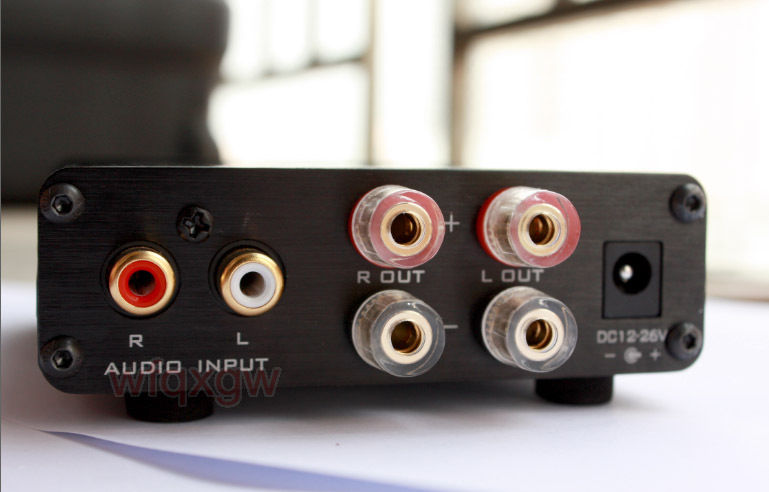

Hereās the rear panel:
Itās a hi-fi amp, going into 100w (8ohm) hi-fi speakers.
I want to be sure none of the cables I buy are gonna cause any damage to the amp/speakersā¦
The one thatās confusing me at the moment, is the XLR to TRS cables. Iāll need to buy 2 (for Pio outs M1 L + R, obviously), but does each one need to be MONO or STEREO? I would have assumed MONO, but someone earlier linked to stereo ones.
Youāre not going to damage anything with your cables, as long as you donāt use the XLR inputs on the Xenyx.
Iād recommend Neutrik connectors too if youāre wanting quality.
Okay - what about 2 of these (Pio M1 L +R, to Xenyx 1 + 2):
and 1 of these Xenyx Main Out, to t-amp inouts):
Ā£30āish quid is doable for a nice treat for myselfā¦
(Still need an answer for teh MONO/STEREO issue, thoughā¦)
Each XLR-TRS cable is balanced mono. āStereoā (3 conductor) connectors are used for balanced mono connections, so youāll be buying two āstereoā cables.
yeah - I understand that. is that what I want to do, though? Will I be connecting a āmaleā stereo plug, into a female āmonoā mic input on teh Xenyx? Can I do that/should I do that that?
